Sketching and Cardboard Prototyping

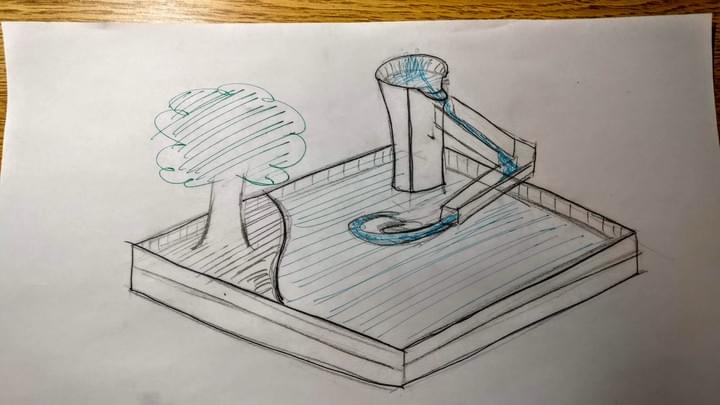

Like for the beginning of any project, I sketched ideas and designs I had imagined for this project to get a better idea of the size, shape, and breadth of the project. One concept we learned throughout the course is to not be weary of making super simple prototypes out of any available material, like cardboard!
Designing and Modelling

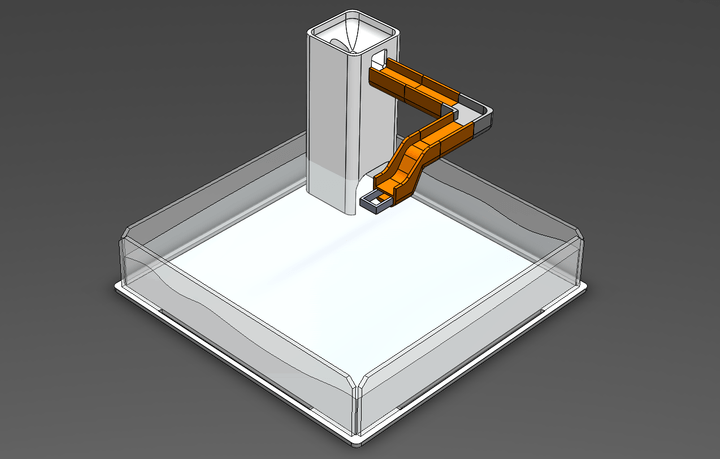

After I had a good idea of what I want to make, I began to 3D model all pieces of the project and think about the required hardware I'd need. This included the leak proof bed made out of laser cut acrylic pieces and the uniquely designed connector pieces that are meant to guide the flow of the water, and an adequate water pump.
Design Considerations

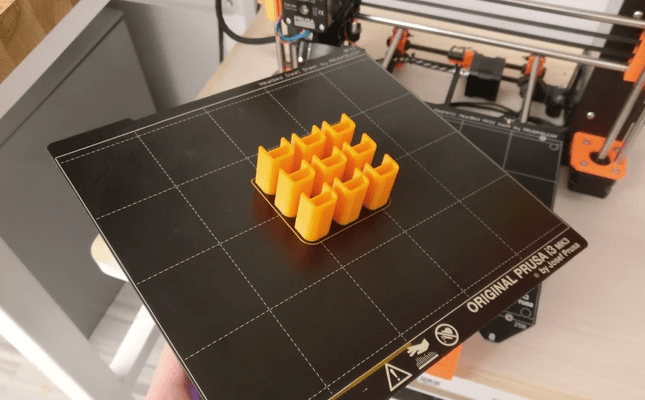

I knew I wanted to make many copies of the same pieces, so I resorted to 3D printing all of them. I modified certain designs to be able to print all components with minimal support. Also, I wanted to keep a consistent color theme for all pieces, keeping the straight parts orange and corner pieces gray.

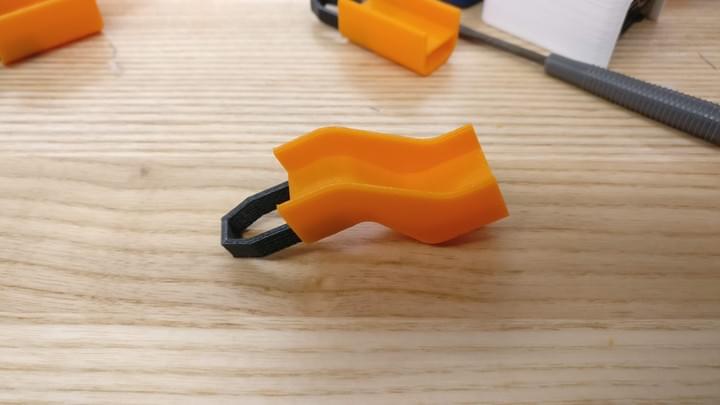

I had designed each connector piece fit snug into the cavity of another piece. Thinking back, I should have designed the pieces to not only be friction fit, but also snap into place. A snapping sensation with a very hands-on and interactive project like this adds a level of satisfaction and confidence to people who make their own unique water paths.
